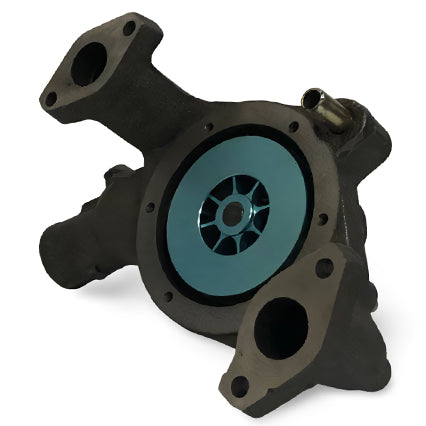

1642e 1961-1965 Big Block Ford Mercury 352, 390, 400, 427 dowel pin water pump

$139.00

1642e 1961-1965 Big Block Ford Mercury 352, 390, 400, 427 dowel pin water pump

$139.00

Is your 1961-1964 big block Ford running hot? Flowkooler designed a high flow water pump with a CNC machined billet impeller to increased vane count and a reduced casting-to-impeller vane clearance.  It achieves greater flow rates, higher head pressure and a more efficient flow. The impeller color is due to Type II Class II military grade surface coating which protects against corrosive fluids.

FlowKooler introduced the first hi flow pumps and continues to improve impeller design. Why is increased flow so important to cooling a hot Ford FE engine? Because it has been proven time and time again that reducing the cycle time between the heat source and the heat sink creates more opportunities to shed heat and drop engine temperatures.

Prior to 1965 Ford FE motors utilized a generator.  In 1965 Ford switched to an alternator.  Please note the 1642E pump has a dowel pin to accommodate the generator bracket.  Additionally the "flat part" of the casting near the hose connection is a greater area which allows for the larger pulley.

From 0-3,300 RPM…Nothing Beats a FlowKooler!

General Specifications:
Type of Material of Pump Body Cast Iron
Number of Blades on Impeller 16 CNC Aluminum
Direction of Rotation CW
Fan Hub Working Height 7 9/16"
Inlet Outside Diameter 2 1/8"
Hose Connections: 1st 2nd
Gender F M
Diameter 5/8" (10:00 position) 5/8" (11:00)
Threaded Yes No
Other Special Features:
  • 16 blade skip vane CNC Machined Aluminum impeller system
  • Impeller protected with a military grade Type II anodized surface coating
  • Mounted dowel pin on front passenger side of pump
  • Fits 1961-65 Mercury, Ford 330, 352, 390, 406, 427 cu. in. V8s
  • May also be used in marine applications
Parts Contained in Box:
Mounting Gaskets, Installation Sheet, FlowKooler Decal
Make Model Year Block CID Liters
ford custom 500 1964 V8 390 6.4L
ford custom 500 64-61 V8 352 5.8L
ford custom 500 64-64 V8 406 6.6L
ford custom 500 64-64 V8 427 7.0L
ford fairlane 1964 V8 427 7.0L
ford fairlane 64-62 V8 390 6.4L
ford galaxie, galaxie 500 63-62 V8 400 6.6L
ford galaxie, galaxie 500 64-61 V8 352 5.8L
ford galaxie, galaxie 500 64-61 V8 390 6.4L
ford galaxie, galaxie 500 64-61 V8 406 6.7L
ford galaxie, galaxie 500 64-61 V8 427 7.0L
ford ltd 1965 V8 352 5.8L
ford ltd 1965 V8 390 6.4L
ford ltd crown victoria 1965 V8 352 5.8L
ford thunderbird 1963 V8 427 7.0L
ford thunderbird 61-64 V8 390 6.4L
