1743 1980-1986 AMC Jeep 150 258 CW water pump

$99.00

1743 1980-1986 AMC Jeep 150 258 CW water pump

$99.00

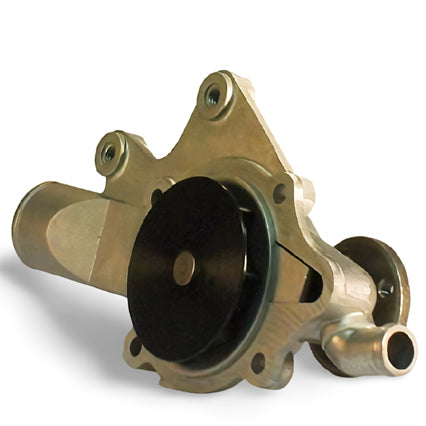

Flowkooler high flow pump 1743 for the Jeep Cherokee, Comanche and Wagoneer. It has a CNC machined billet impeller designed with an increased vane count and a reduced impeller clearance to achieve greater flow rates, higher block pressure. A Type II Class II military grade anodize surface coating protects against corrosive fluids.

We developed this hi flow pump because Jeeps tend to overheat in traffic and on the trail. Tight engine space and limited airflow plague the cooling system but it has been proven time and time again that reducing the cycle time between the heat source and the heat sink drops engine temperatures for slow speed rock crawling and stop and go traffic.

From 0-3,300 RPM…Nothing Beats a FlowKooler!

General Specifications:
Type of Material of Pump Body Aluminum
Number of Blades on Impeller 8 CNC Aluminum
Direction of Rotation CW
Fan Hub Working Height
3 11/16"
Shaft Diameter 5/8"
Inlet Outside Diameter 1 3/4"
Hose Connections: 1st 2nd
Gender M NA
Diameter 3/4" NA
Threaded No NA
Other Special Features:
  • CNC machined billet aluminum impeller with 60% more vanes
  • Swept blade shrouded impeller
  • Fits standard V-belt set-up for Clockwise rotation
  • Fits AMC, Jeep applications from 1980-1986
Parts Contained in Box:
Mounting Gaskets, Installation Sheet, FlowKooler Decal
Make Model Year Block CID Liters
amc amx 1980 L6 258 CW 4.2L
amc concord 1983 All All CW
amc concord 82-80 L6 258 CW 4.2L
amc eagle 1983 L4 151 CW 2.5L
amc eagle 84-83 L4 150 CW 2.5L
amc eagle 86-80 L6 258 CW 4.2L
amc pacer 1980 L6 258 CW 4.2L
amc spirit 1983 L4 258 CW 4.2L
amc spirit 82-80 L6 258 CW 4.2L
jeep cherokee 83-80 L6 258 CW 4.2L
jeep cherokee 86-84 L4 150 CW 2.5L
jeep cj series 86-80 L6 258 CW 4.2L
jeep cj series 86-83 L4 150 CW 2.5L
jeep comanche 1986 L4 150 CW 2.5L
jeep grand wagoneer 86-84 L6 258 CW 4.2L
jeep j series pickup 86-80 L6 258 CW 4.2L
jeep scrambler 85-81 L6 258 CW 4.2L
jeep scrambler 85-83 L4 150 CW 2.5L
jeep wagoneer 83-80 L6 258 CW 4.2L
jeep wagoneer 86-84 L4 150 CW 2.5L
