1759 Small Block Chevy GM tbi long shaft water pump

$99.00

1759 Small Block Chevy GM tbi long shaft water pump

$99.00

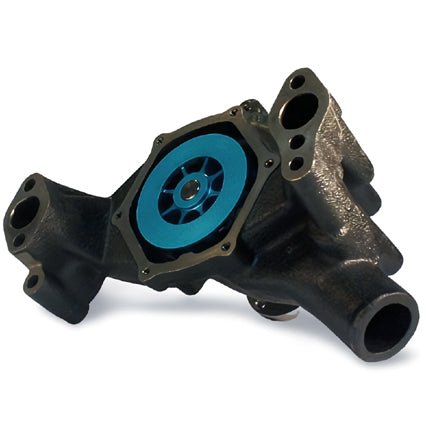

Flowkooler pump 1759 fits small block Chevy engines with the taller hub height  and has an un-threaded PS boss.  The pump has a 16 blade skip vane impeller that is CNC machined from billet aluminum.  An increased vane count and a reduction in the plate-impeller clearance achieves greater flow rates, higher head pressure and a more efficient flow than other OEM water pumps.  It is then surface coated with a military grade type II Class II anodized finish.

FlowKooler introduced the first hi flow pumps and continues to improve impeller design. Why is increased flow so important to cooling a hot small block engine? Because it has been proven time and time again that reducing the cycle time between the heat source and the heat sink creates more opportunities to shed heat and drop engine temperatures.

From 0-3,300 RPM…Nothing Beats a FlowKooler!

General Specifications:
Type of Material of Pump Body Cast Iron
Number of Blades on Impeller 16 CNC Aluminum
Direction of Rotation CW or CCW
Fan Hub Working Height 6-7/8" (long)
Shaft Diameter 5/8"
Pulley Bolt Pattern 1 1/2" adjacent  & 2 1/8" across
Power Steering boss Yes - 3/8" through hole drive side
Alternator Boss Yes - 3 3/8" threaded mounts
Hose Connections 1st 2nd
Gender F NA
Diameter 5/8" NA
Threaded Yes NA
Other Special Features:
  • 16 blade CNC Machined Aluminum impeller system
  • Protected with military grade anodized surface coating
  • Fits General Motors products with TBI
  • 87-95 SBC should purchase 1774 without the power steering boss
Make Model Year Block CID Liters
CHECKER DELUXE 76-69 V8 307 5.0L
CHECKER DELUXE 76-69 V8 350 5.7L
CHECKER MARATHON 70-69 V8 307 5.0L
CHECKER MARATHON 76-69 V8 350 5.7L
CHEVROLET BEL AIR 1969 V8 327 5.3L
CHEVROLET BEL AIR 1969 V8 327 5.4L
CHEVROLET BEL AIR 75-69 V8 350 5.7L
CHEVROLET BEL AIR 75-70 V8 400 6.6L
CHEVROLET BISCAYNE 1969 V8 327 5.3L
CHEVROLET BISCAYNE 1969 V8 327 5.4L
CHEVROLET BISCAYNE 72-69 V8 350 5.7L
CHEVROLET BISCAYNE 72-70 V8 400 6.6L
CHEVROLET BLAZER 73-72 V8 307 5.0L
CHEVROLET BLAZER 76-72 V8 350 5.7L
CHEVROLET BLAZER 76-75 V8 400 6.6L
CHEVROLET BROOKWOOD 1969 V8 327 5.3L
CHEVROLET BROOKWOOD 71-69 V8 307 5.0L
CHEVROLET BROOKWOOD 72-69 V8 350 5.7L
CHEVROLET BROOKWOOD 72-70 V8 400 6.6L
CHEVROLET C10/C1500 PICKUP 1973 V8 307 5.0L
CHEVROLET C10/C1500 PICKUP 1976 V8 402 6.6L
CHEVROLET C10/C1500 PICKUP 76-74 V8 350 5.7L
CHEVROLET C1500 SUBURBAN 1973 V8 307 5.0L
CHEVROLET C1500 SUBURBAN 1976 V8 307 5.0L
CHEVROLET C1500 SUBURBAN 76-73 V8 350 5.7L
CHEVROLET C20/C2500 PICKUP 1973 V8 307 5.0L
CHEVROLET C20/C2500 PICKUP 1976 V8 402 6.6L
CHEVROLET C20/C2500 PICKUP 76-73 V8 350 5.7L
CHEVROLET C2500 SUBURBAN 1973 V8 307 5.0L
CHEVROLET C2500 SUBURBAN 1976 V8 307 5.0L
CHEVROLET C2500 SUBURBAN 76-73 V8 350 5.7L
CHEVROLET C30 PICKUP 1973 V8 307 5.0L
CHEVROLET C30 PICKUP 1976 V8 402 6.6L
CHEVROLET C30 PICKUP 76-73 V8 350 5.7L
CHEVROLET CAMARO 1969 V8 327 5.3L
CHEVROLET CAMARO 1969 V8 327 5.4L
CHEVROLET CAMARO 1970 V8 396 6.5L
CHEVROLET CAMARO 1976 V8 305 5.0L
CHEVROLET CAMARO 69-68 V8 302 4.9L
CHEVROLET CAMARO 72-69 V8 400 6.6L 2 carb small block
CHEVROLET CAMARO 73-69 V8 307 5.0L
CHEVROLET CAMARO 76-69 V8 350 5.7L
CHEVROLET CAPRICE 1969 V8 327 5.3L
CHEVROLET CAPRICE 1969 V8 327 5.4L
CHEVROLET CAPRICE 71-69 V8 307 5.0L
CHEVROLET CAPRICE 76-69 V8 350 5.7L
CHEVROLET CAPRICE 76-70 V8 400 6.6L2 carb small block
CHEVROLET CAPRICE 90-86 V8 307 5.0L
CHEVROLET CHEVELLE 1976 V8 305 5.0L
CHEVROLET CHEVELLE 73-69 V8 307 5.0L
CHEVROLET CHEVELLE 76-69 V8 350 5.7L
CHEVROLET CHEVELLE 76-70 V8 400 6.6L 2 carb small block
CHEVROLET CHEVY II 1969 V8 307 5.0L
CHEVROLET CHEVY II 1969 V8 350 5.7L
CHEVROLET EL CAMINO 1976 V8 305 5.0L
CHEVROLET EL CAMINO 73-69 V8 307 5.0L
CHEVROLET EL CAMINO 76-69 V8 350 5.7L
CHEVROLET EL CAMINO 76-72 V8 400 6.6L
CHEVROLET G10/ G1500 VAN 1972 V8 307 5.0L
CHEVROLET G10/ G1500 VAN 1976 V8 400 6.6L
CHEVROLET G10/ G1500 VAN 78-72 V8 350 5.7L
CHEVROLET G20/ G2500 VAN 1972 V8 350 5.7L
CHEVROLET G20/ G2500 VAN 72-71 V8 307 5.0L
CHEVROLET G20/ G2500 VAN 76-75 V8 350 5.7L
CHEVROLET G20/ G2500 VAN 76-75 V8 400 6.6L
CHEVROLET G30/ G3500 VAN 76-72 V8 350 5.7L
CHEVROLET G30/ G3500 VAN 76-75 V8 400 6.6L
CHEVROLET IMPALA 1969 V8 327 5.3L
CHEVROLET IMPALA 1969 V8 327 5.4L
CHEVROLET IMPALA 71-69 V8 307 5.0L
CHEVROLET IMPALA 76-69 V8 350 5.7L
CHEVROLET IMPALA 76-70 V8 400 6.6L
CHEVROLET K10/1500 PICKUP 74-73 V8 307 5.0L
CHEVROLET K10/1500 PICKUP 76-73 V8 350 5.7L
CHEVROLET K10/1500 PICKUP 76-75 V8 400 6.6L
CHEVROLET K10/K1500 SUBURBAN 1973 V8 307 5.0L
CHEVROLET K10/K1500 SUBURBAN 76-73 V8 350 5.7L
CHEVROLET K10/K1500 SUBURBAN 76-75 V8 400 6.6L
CHEVROLET K20/K2500 PICKUP 76-73 V8 350 5.7L
CHEVROLET K20/K2500 PICKUP 76-75 V8 400 6.6L
CHEVROLET K20/K2500 SUBURBAN 1973 V8 307 5.0L
CHEVROLET K20/K2500 SUBURBAN 76-73 V8 350 5.7L
CHEVROLET K20/K2500 SUBURBAN 76-75 V8 400 6.6L
CHEVROLET K30/K3500 PICKUP 1973 V8 305 5.0L
CHEVROLET K30/K3500 PICKUP 76-73 V8 350 5.7L
CHEVROLET K5 BLAZER 76-75 V8 350 5.7L
CHEVROLET K5 BLAZER 76-75 V8 400 6.6L
CHEVROLET KINGSWOOD 1969 V8 327 5.3L
CHEVROLET KINGSWOOD 1969 V8 396 6.5L
CHEVROLET KINGSWOOD 70-69 L6 250 4.1L
CHEVROLET KINGSWOOD 71-69 V8 307 5.0L
CHEVROLET KINGSWOOD 72-69 V8 350 5.7L
CHEVROLET KINGSWOOD 72-70 V8 400 6.6L
CHEVROLET LAGUNA 76-73 V8 305 5.0L
CHEVROLET LAGUNA 76-73 V8 350 5.7L
CHEVROLET LAGUNA 76-73 V8 400 6.6L
CHEVROLET MALIBU 1973 V8 307 5.0L
CHEVROLET MALIBU 1976 V8 307 5.0L
CHEVROLET MALIBU 76-69 V8 350 5.7L
CHEVROLET MALIBU 76-73 V8 350 5.7L
CHEVROLET MALIBU 76-73 V8 400 6.6L
CHEVROLET MONTE CARLO 1976 V8 305 5.0L
CHEVROLET MONTE CARLO 76-70 V8 350 5.7L
CHEVROLET MONTE CARLO 76-70 V8 400 6.6L
CHEVROLET NOVA 1975 V8 262 4.3L
CHEVROLET NOVA 1976 V8 305 5.0L
CHEVROLET NOVA 73-69 V8 307 5.0L
CHEVROLET NOVA 76-69 V8 350 5.7L
CHEVROLET P10 VAN 1973 V8 307 5.0L
CHEVROLET P10 VAN 75-73 V8 350 5.7L
CHEVROLET P20 VAN 1973 V8 307 5.0L
CHEVROLET P20 VAN 74-72 V8 350 5.7L
CHEVROLET P20 VAN 76-75 V8 350 5.7L
CHEVROLET P30 VAN 1976 V8 400 6.6L
CHEVROLET P30 VAN 70-69 L3 159 2.6L
CHEVROLET P30 VAN 73-72 V8 307 5.0L
CHEVROLET P30 VAN 76-72 V8 350 5.7L 1972 w/ 4 BBL carb
CHEVROLET TOWNSMAN 1969 L6 250 4.1L
CHEVROLET TOWNSMAN 1969 V8 327 5.3L
CHEVROLET TOWNSMAN 71-69 V8 307 5.0L
CHEVROLET TOWNSMAN 72-69 V8 350 5.7L
GMC C15/C1500 PICKUP 1973 V8 307 5.0L
GMC C15/C1500 PICKUP 1976 V8 307 5.0L
GMC C15/C1500 PICKUP 76-73 V8 350 5.7L
GMC C15/C1500 SUBURBAN 1973 V8 307 5.0L
GMC C15/C1500 SUBURBAN 1976 V8 305 5.0L
GMC C15/C1500 SUBURBAN 76-73 V8 350 5.7L
GMC C25/C2500 PICKUP 1973 V8 307 5.0L
GMC C25/C2500 PICKUP 76-73 V8 350 5.7L
GMC C25/C2500 SUBURBAN 1973 V8 307 5.0L
GMC C25/C2500 SUBURBAN 76-74 V8 350 5.7L
GMC C35/C3500 PICKUP 1973 V8 307 5.0L
GMC C35/C3500 PICKUP 76-73 V8 350 5.7L
GMC G15/G1500 VAN 73-72 V8 307 5.0L
GMC G15/G1500 VAN 76-72 V8 350 5.7L
GMC G25/G2500 VAN 73-72 V8 307 5.0L
GMC G25/G2500 VAN 76-72 V8 350 5.7L
GMC G25/G2500 VAN 76-75 V8 400 6.6L
GMC G35/G3500 VAN 73-72 V8 307 5.0L
GMC G35/G3500 VAN 76-72 V8 350 5.7L
GMC G35/G3500 VAN 76-75 V8 400 6.6L
GMC JIMMY 1972 V8 307 5.0L
GMC JIMMY 1976 V8 305 5.0L
GMC JIMMY 76-73 V8 350 5.7L
GMC JIMMY 76-75 V8 400 6.6L
GMC K15/K1500 PICKUP 1973 V8 307 5.0L
GMC K15/K1500 PICKUP 76-73 V8 350 5.7L
GMC K15/K1500 PICKUP 76-75 V8 400 6.6L
GMC K15/K1500 SUBURBAN 1973 V8 307 5.0L
GMC K15/K1500 SUBURBAN 76-73 V8 350 5.7L
GMC K15/K1500 SUBURBAN 76-75 V8 400 6.6L
GMC K25/K2500 PICKUP 1973 V8 307 5.0L
GMC K25/K2500 PICKUP 76-73 V8 350 5.7L
GMC K25/K2500 PICKUP 76-75 V8 400 6.6L
GMC K25/K2500 SUBURBAN 74-73 V8 350 5.7L
GMC K25/K2500 SUBURBAN 76-75 V8 350 5.7L
GMC K25/K2500 SUBURBAN 76-75 V8 400 6.6L
GMC K35/K3500 PICKUP 74-73 V8 350 5.7L
GMC P15/P1500 VAN 1973 V8 350 5.7L
GMC P25/P2500 VAN 1973 V8 307 5.0L
GMC P25/P2500 VAN 76-73 V8 350 5.7L
GMC P25/P2500 VAN 76-75 V8 350 5.7L
GMC P35/P3500 VAN 1973 V8 307 5.0L
GMC P35/P3500 VAN 76-73 V8 350 5.7L
GMC SPRINT 1976 V8 305 5.0L
GMC SPRINT 73-71 V8 307 5.0L
GMC SPRINT 76-71 V8 350 5.7L
GMC SPRINT 76-74 V8 400 6.6L
PONTIAC ACADIAN 1971 V8 307 5.0L
PONTIAC VENTURA 73-71 V8 307 5.0L
STUDEBAKER AVANTI II 76-73 V8 400 6.6L
